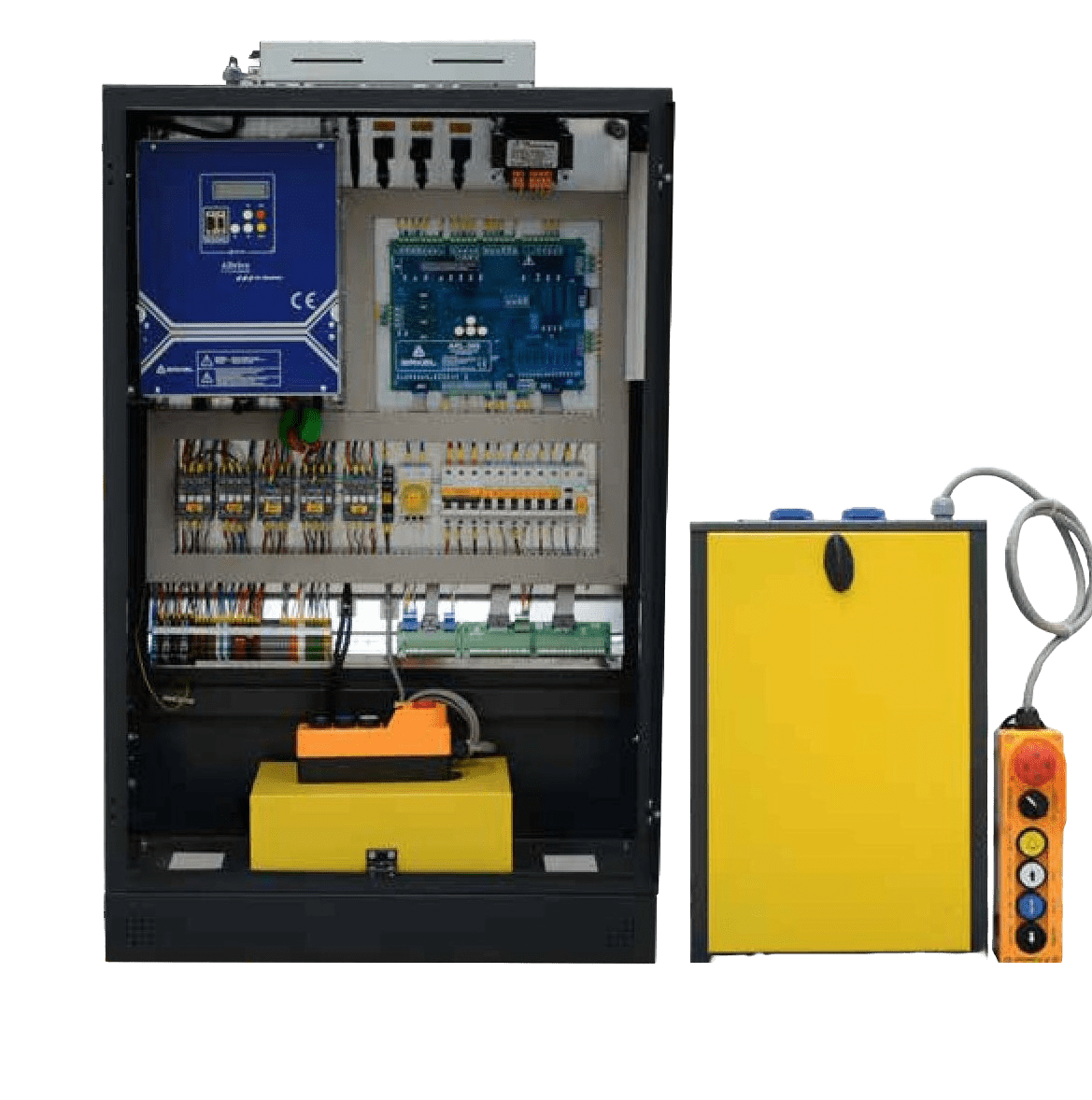

Number of stops: 16
Drive Type: Traction
Car Positioning: Magnetic Switches / Motor Encoder
Door Bridging: Available
Models: 7.5KW(17A) & 11KW(26A)
Control Type: Single Button Collective / Double Button Collective
Group Control: Duplex
Elevator Speed: 1.75 m/s
Motor Drive Type: Contactorless Drive with STO Function
Compliance to Standards: EN 81-20
Rollback Prevention: Rollback Prevention at start through pre-torque and anti-rollback functions
Engine Control: Synchronous Machinery
Input Voltage (l1, l2, l3): AC 3 Ph, 320-420, 50/60 hz

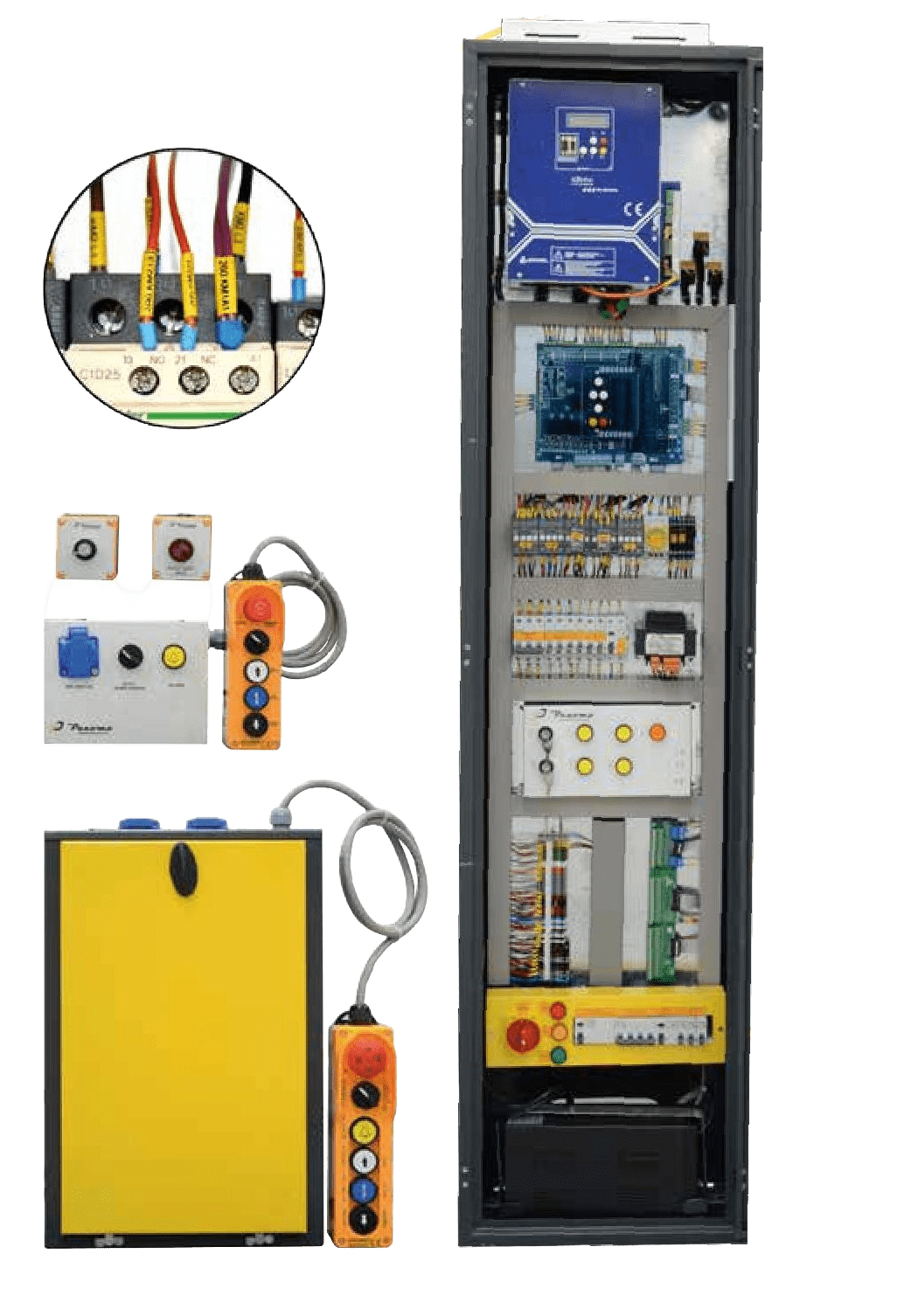

Models: ARCODE 14, 17, 26, 35, 50, 75A
Speed: Up to 4m/s
Group Study: Up to 8 elevators
Number of Stops: Up to 64 stops
Communication Protocol: CANbus
Encoder Options: 5V TTL, 10-30v HTL, EnDat, SSI, SinCos, BISS
Safety Circuit Voltage: 48VAC - 250 VAC

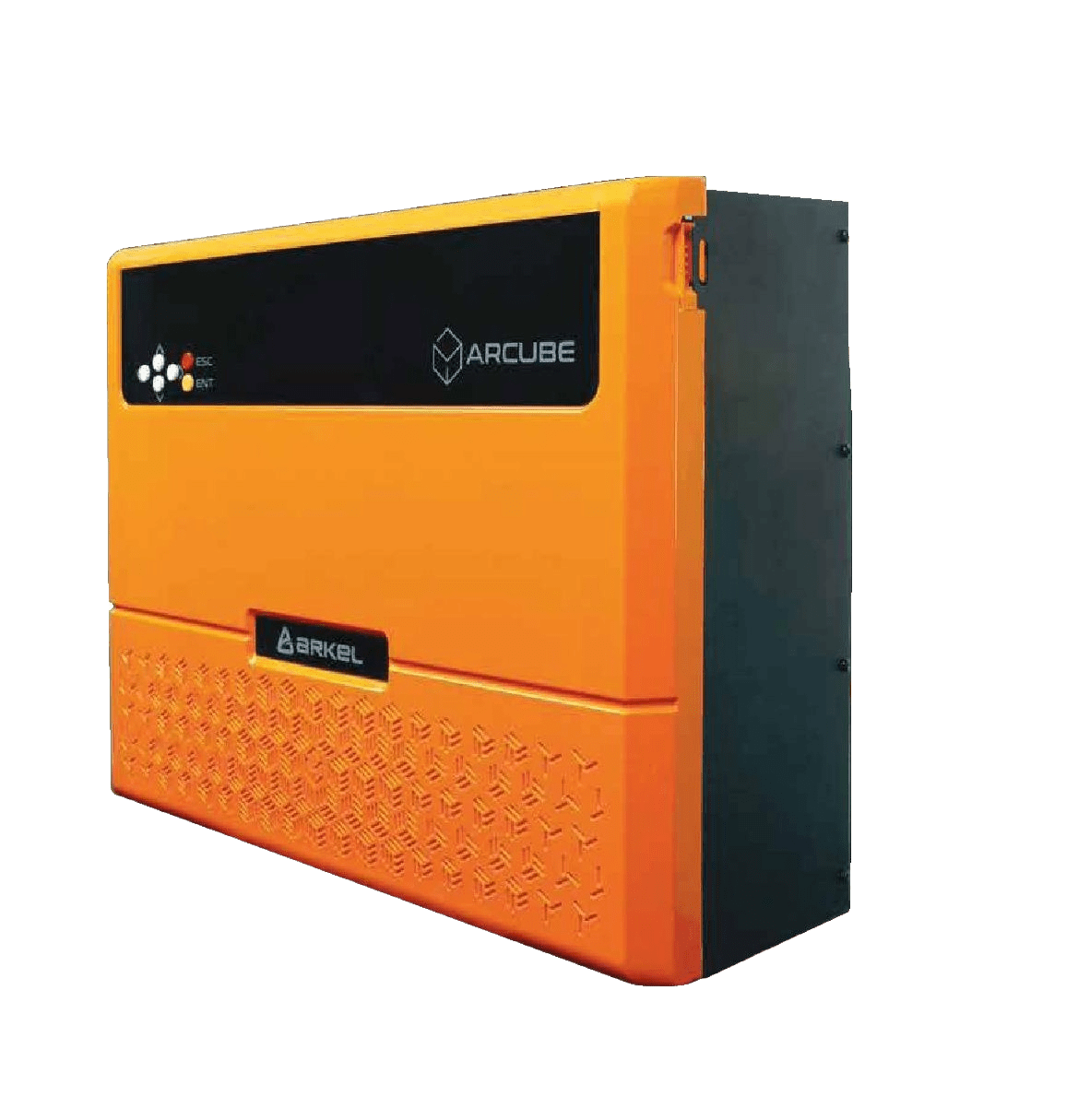

A3 Compliant (internal door bridge control relays)
Up to 16 stops with parallel routing
Up to 64 stops with serial bus (CANbus)
Double door cabin support (Automatic or semi-automatic)
Leveling up, door early opening [with built-in door bridging relays)
Full compatibility with all Arcode peripheral cards
Cabinet communication: Arcode IBC -CPC cards upon request with or with the FX-CAN card
Well communication: optionally with ready-made installation (CANbus) or with MSP16
Well copying: With or without motor encoder classical magnetic well system
All functions with 16x2 character LCD display access via card
All over CANbuss similar to Arcode access to functions
Serial communication with Arkel ADrive with a single cable
HSR for other motor drives and hydraulic lifts
communication with the link card
Possibility of parameter copying and software update with SD card
Single socket connection with KM 25 door control card (CAN bus)

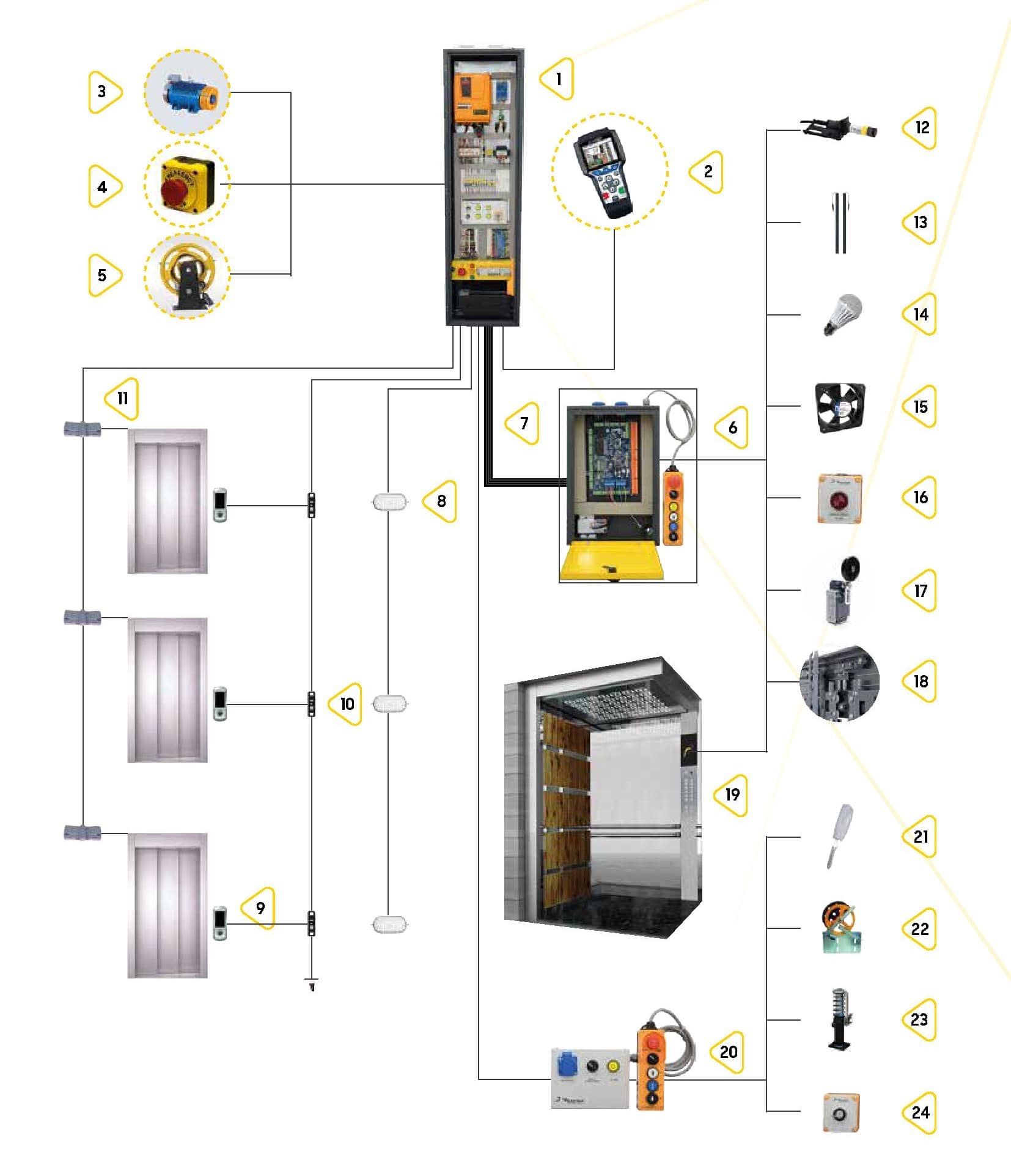

1 - Elevator Control Panel
2 - Handheld Terminal
3 - Elevator Motor
4 - Emergency Stop Button
5 - Speed Regulator
6 - Revision Panel
7 - Flexible Cable Control Panel and Equipment
8 - Lighting Fixture
9 - Floor Button
10 - Floor Button Connection Module
11 - Landing Door Connection Connector
12 - Floor Sensing Sensor and Limit Circuit Breaker
13 - Longitudinal Photocell
14 - Cabin Lamp
15 - Cabin Fan
16 - Under Cabinet Bypass Siren
17 - Roller Limit Circuit Breaker
18 - Interior Door Command and Security Circuit
19 - Cabin Button
20 - Pit Panel
21 - Intercom Phone
22 - Regulator Rope Tensioner Contact
23 - Cabin and Counterweight Contact
24 - Pit Reset Switch
